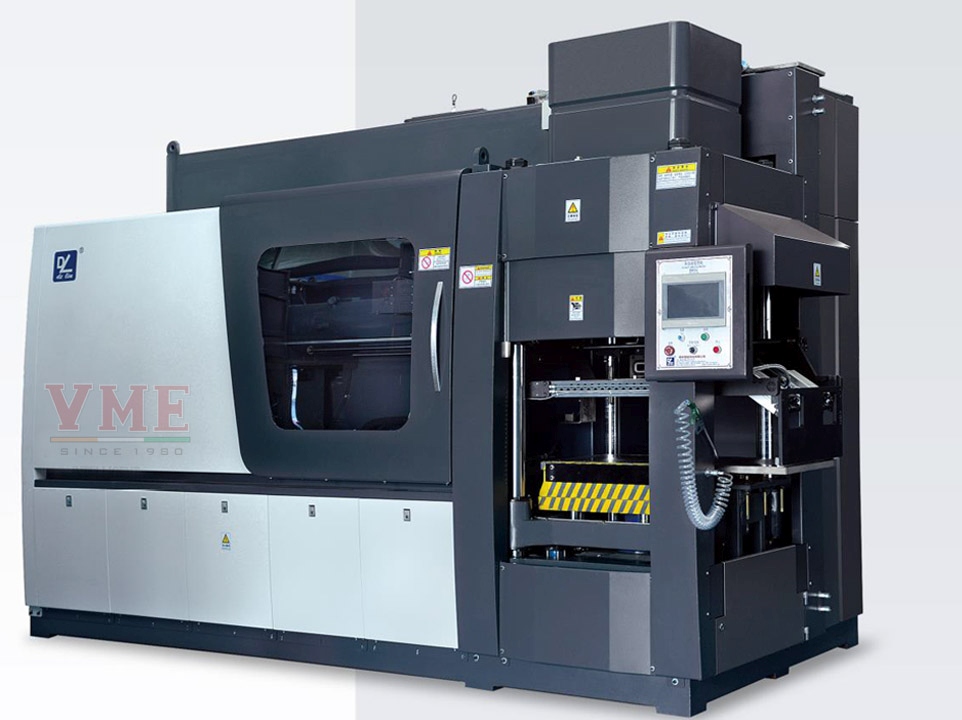

Automatic Molding Machine VMEZX100100
Features
- The machine is stable, low power consumption, and long lifetime.
- High level of automation, easy control, and lower labor cost.
- Highly standardized, good parts interchangeable, fast and low-cost maintenance.
- The sand could be compacted both inside and outside according to technical requirements, which makes the sand mold better.
- Mold release agent is sprayed automatically, which makes the demolding smoothly, casting surface glossily, and no defect in the sand mold.
- Electric cabinet and hydraulic station are all installed in the machine, which makes them compact and easy maintenance.
- Low failure rate, and the machine can diagnose the failure by its own.
| Description | VMEZX100100 |
|---|---|
| Mold Dimensions (L x W) | 1000 x 1000mm |
| Thickness of Sand Mold | 200-250mm 200-250mm |
| Molding Speed (s/mold) | 46s/mold (without the time for sand core loading) |
| Squeezing Pressure | ≤ 21Mpa |
| Air Consumption | 1.5m3(Normal) |
| Humidity of Sand Mold | 2.8-3.5% |
| Drive Method | Electric-Pneumatic- Hydraulic |
| Thickness of Pattern | 100mm |
| Power Supply | AC380V, 50Hz |
| Total Power of the Machine | 50kw |
| Net Weight | 30T |
| Machine Dimensions (L x W x H) |
6170 x 3300 x 4300 mm |
Automatic Molding Machine VMEZX 3070/ 4050/ 5060 / 6070
| Description | VMEZX3070 | VMEZX4050 | VMEZX5060 | VMEZX6070 |
|---|---|---|---|---|
| Mold Dimensions (L x W) | 300 x 700mm | 410 x 510mm | 500 x 600mm | 600 x 700mm |
| Thickness of Sand Mold | 80-150mm 100-150mm |
80-150mm 80-150mm |
80-190mm 110-190mm |
120-200mm 120-200mm |
| Molding Speed (s/mold) | 36s/mold (without the time for sand core loading) |
36s/mold (without the time for sand core loading) |
38s/mold (without the time for sand core loading) |
40s/mold (without the time for sand core loading) |
| Squeezing Pressure | ≤ 15Mpa | ≤ 15Mpa | ≤ 15Mpa | ≤ 20Mpa |
| Air Consumption | 0.5m3(Normal) | 0.3m3(Normal) | 0.5m3(Normal) | 0.6m3(Normal) |
| Humidity of Sand Mold | 2.5-3.5% | 2.5-3.5% | 2.5-3.5% | 2.5-3.5% |
| Drive Method | Electric-Pneumatic- Hydraulic |
Electric-Pneumatic- Hydraulic |
Electric-Pneumatic- Hydraulic |
Electric-Pneumatic- Hydraulic |
| Thickness of Pattern | 20-25mm | 20-25mm | 20-25mm | 25-30mm |
| Power Supply | AC380V, 50Hz | AC380V, 50Hz | AC380V, 50Hz | AC380V, 50Hz |
| Total Power of the Machine | 14kw | 14kw | 14kw | 24kw |
| Net Weight | 9T | 8T | 9T | 12T |
| Machine Dimensions (L x W x H) |
4540 x 1900 x 3270 mm | 4220 x 2100 x 3080 mm | 4470 x 2100 x 3350 mm | 4980 x 2400 x 3760 mm |
