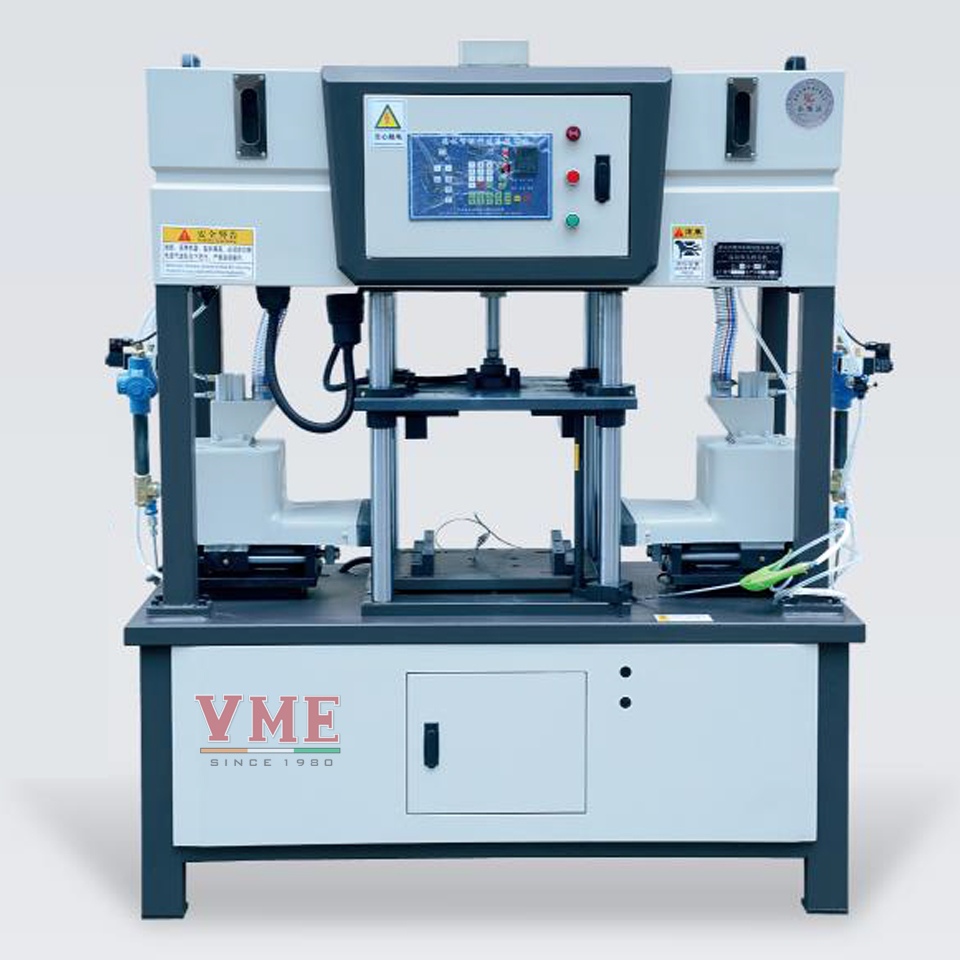

Automatic Double-head Core Shooting Machine comes in 3 models.
Specification
| Description | DLZS3828S | DLZS5050S | DLZS8080S |
|---|---|---|---|
| Max weight for Core box | 3.2kg x 2 | 5kg x 2 | 15kg x 2 |
| Ejector Stroke from Left to Right | ≤ 125mm | ≤ 250mm | ≤ 250mm |
| Max stroke of Vertical Mold Closing | ≤ 300mm | ≤ 450mm | ≤ 700mm |
| Heating Power | 8kw | 15kw | 37kw |
| Net Weight | 600kg | 860kg | 3000kg |
| Machine Dimensions (L x W x H) |
1420 x 680 x 1700 mm | 1850 x 880 x 2235 mm | 2485 x 1285 x 3100 mm |
Front or back core-pulling could be installed according to customer’s requirement
